W800 Silicon Steel EI Transformer Laminations Laminated Magnetic Core 0.35mm

Product Categories
Jiangyin Centersky Electric Appliance Co., Ltd.
Contact Now

W800 Silicon Steel EI Transformer Laminations Laminated Magnetic Core 0.35mm

Brand Name : CENTERSKY or NO LOGO

Model Number : EI 240, EI 270, EI 300, EI 360

Certification : ISO, ROHS,

Place of Origin : Jiangyin, Jiangsu, China

MOQ : 5000 KGS

Price : USD 1100 KG ---USD 1600 KG

Payment Terms : L/C, T/T, D/P

Supply Ability : 1500 MT PER MONTH

Delivery Time : 14 days for 25 tons

Packaging Details : Standard Packing 25kg One Box

Material Type : CRNGO Silicon Steel Material

THICKNESS : 0.5mm/0.35mm Thickness

KEY WORD : Laminated Core Transformer

PACKING : 25kg One Box, 500-1000kg One Pallet

Surface Treatment : T4 Coating

Production Name : W800 Silicon Steel EI Sheet Laminated Core Transformer Lamination

Application : Parts of Transformer

Company established : Established in 2000, more than 20 years' manufacturing experience

Sizes : EI 114, EI 126, EI 133.2, EI 150, EI 52.4, EI 162, EI 180, EI 192, EI 210, EI 240

Market : 70% Domestic Market, 30% Export

Grade Material : 50WW800, 50WW600, 50WW470 and others

Contact Now

W800 Silicon Steel EI Sheet Laminated Core Transformer Lamination

Introduction:

CRGO E & I Lamination Stamping Size
Steel mart has 2 units in Panvel to manufacture & supply all kinds of CRGO & CRNO Transformer - lamination stampings in E&I types and also strips & wound - toroidal core types .
Steel mart specializes in CRGO Transformer Mitred - V Notch stampings

Jiangyin Centersky manufacture hundreds of silicon steel EI core, UI core and customized core.

Capacity: 1500mt per month.


Single phase EI core is made by the silicon steel strip. The model of EI lamination in standard sizes is from

EI-30 to EI-360.The gap sizes of transformer lamination core can be customized.

Catalogue:

Type a b c d e holes aperture
EI- 28 28 4 6 8 17
EI-35 35 5 7.5 10 19.5
EI-41 41 6 8 13 21
EI-42 42 7 7 7 14
EI-48 48 8 8 16 24
EI-50 50 8 9 16 25.5
EI-57 57 9.5 9.5 19 28.5 4 4
EI-60 60 10 10 20 30 4 5
EI-66 66 11 11 22 33 4 4
EI-75 75 12.5 12.5 25 37.5 4 5.5
EI-76.2 76.2 12.7 12.7 25.4 38.1 4 5
EI-78 78 13 13 26 39 4 5
EI-84 84 14 14 28 41 4 6
EI-85.8 85.8 14.3 14.3 28.6 42.9 4 5
EI-96 96 16 16 32 48 4 6
EI-105 105 17.5 17.5 35 52.5 4 6
EI-108 108 18 18 36 54 4 5.5
EI-114 114 19 19 38 57 4 6
EI-120 120 20 20 40 60 4 7
EI-126 126 21 21 42 63 4 7
EI-133.2 133.2 22.2 22.2 44.4 66.6 4 7
EI-150 150 25 25 50 75 4 8
EI-152.4 152.4 25.4 25.4 50.8 76.2 4 8
EI-162 162 27 27 54 81 4 10
EI-168 168 28 28 50 84 4 10
EI-171 171 28.5 28.5 57 85.5 4 10
EI-180 180 30 30 60 90 4 10
EI-190.5 190.5 31.75 31.75 63.5 95.25 4 10
EI-192 192 32 32 64 96 4 10
EI-210 210 35 35 70 105 4 10
EI-228 228 38 38 76 114 4 10
EI-240 240 40 40 80 120 4 10
EI-254 254 48 55 48 164 4 12
EI-270 270 45 45 90 135 4 12
EI-228 228 38 38 76 114 4 10
EI-300 300 50 50 100 150 4 12
EI-360 360 60 60 120 180 4 12

W800 Silicon Steel EI Transformer Laminations Laminated Magnetic Core 0.35mm

Company information:

Jiangyin Centersky was established in 2000. Main business is manufacturing silicon steel EI lamination, UI lamination, cutting lamination.

Our capacity is 1500mt per month. We have 13 years' export experience.

W800 Silicon Steel EI Transformer Laminations Laminated Magnetic Core 0.35mm

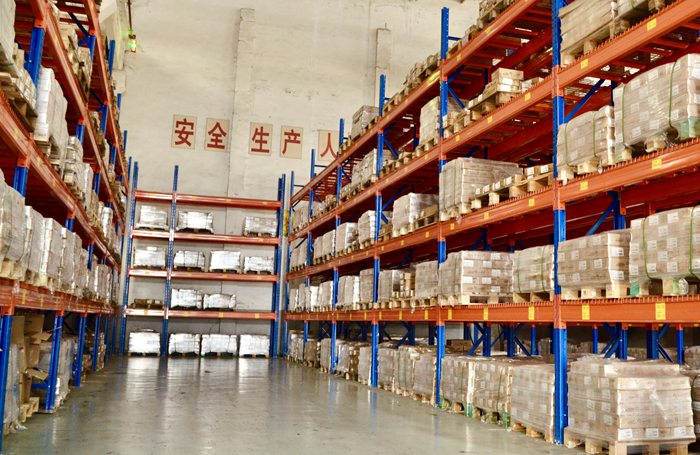

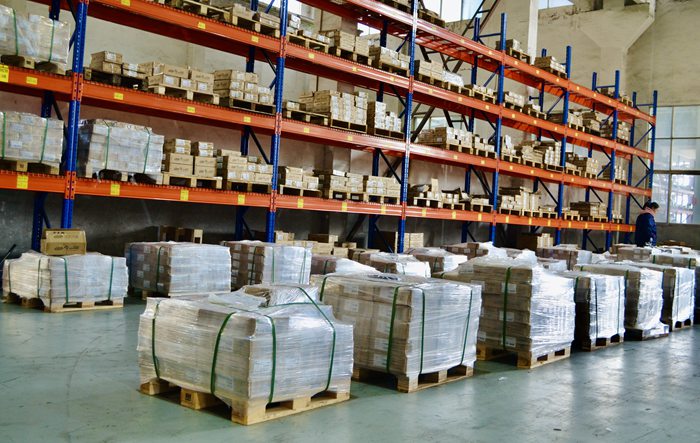

Warehouse:

W800 Silicon Steel EI Transformer Laminations Laminated Magnetic Core 0.35mm

W800 Silicon Steel EI Transformer Laminations Laminated Magnetic Core 0.35mm

FAQ:

1. Q: Can I get some samples?

A: Yes, sample order is available for quality checking and market test.

2. Q: What's the delivery time?

A: Sample order needs 2-3 days. True order needs 8-15 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes, we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes, different models can be mixed up.
